Account Restriction
Accounts may configure a set of smart rules to block announcing or receiving transactions given a series of restrictions.
The account owners - plural in case of multisig accounts - can edit the account restrictions at a later time announcing the specific account restriction transaction.
Restriction types
| Restriction | Incoming Transactions | Outgoing Transactions |
|---|---|---|
| AccountAddressRestriction | ✔️ | ❌ |
| AccountMosaicRestriction | ✔️ | ❌ |
| AccountOperationRestriction | ❌ | ✔️ |
Address restriction
An account can decide to only receive transactions from a list of allowed addresses. Alternatively, the account can define a list of blocked addresses.
Restricting incoming transactions is useful when the account will only be receiving transactions from known addresses, or when the account wants to block transactions coming from unknown senders.

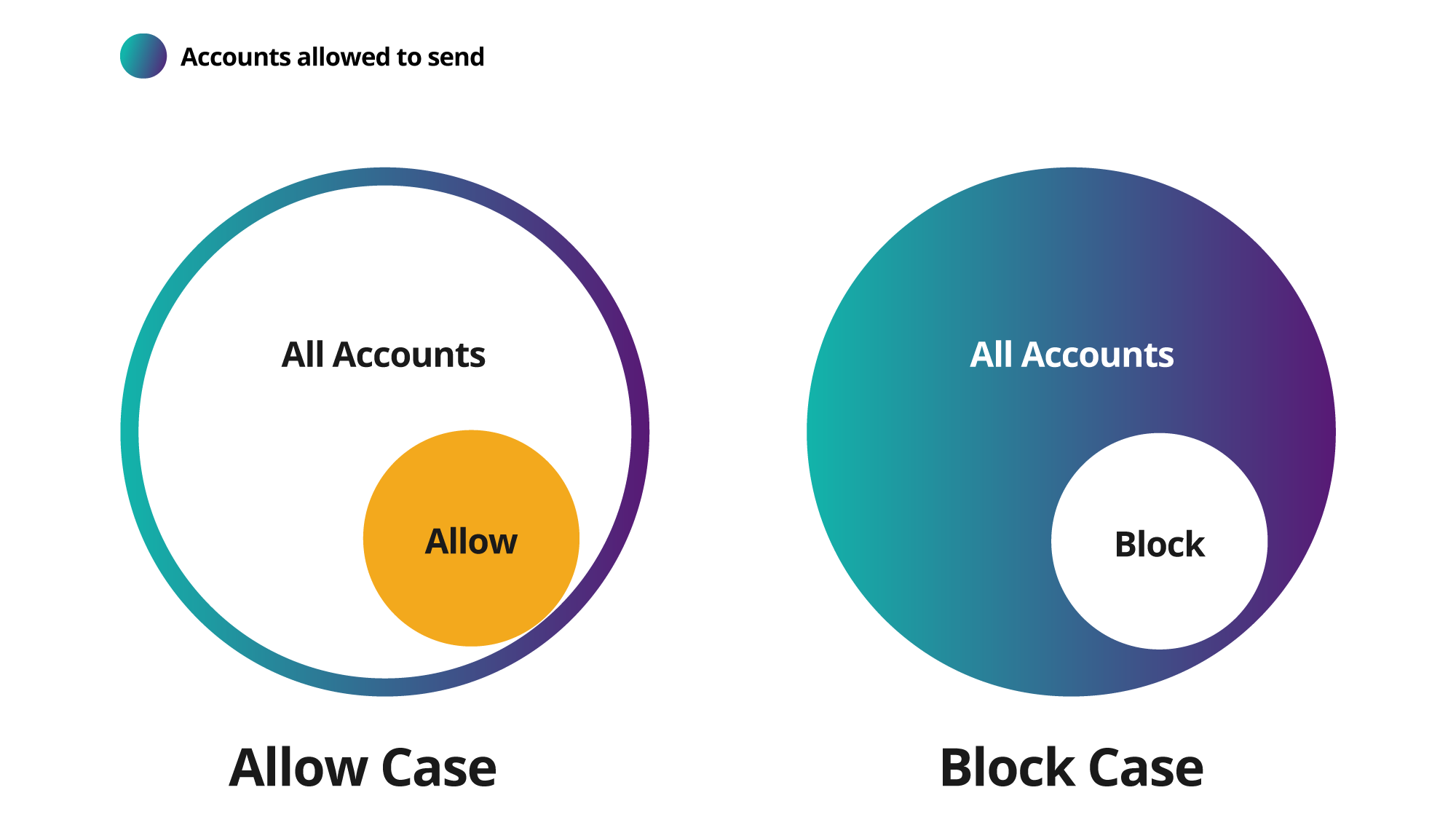

Address restriction diagram
Note
Allow and block restrictions are mutually exclusive. In other words, an account can only configure a block or an allow list per type of restriction.
By default, when there are no restrictions set, all the accounts in the network can announce transactions to the unrestricted account.
Additionally, an account can decide to apply address restrictions to the outgoing transactions, limiting the accounts allowed that are valid recipients.
Mosaic restriction
Similar to address restrictions, an account can configure a restriction to permit incoming transactions only if all the mosaics attached are allowed. On the other hand, the account can refuse to accept transactions containing a mosaic listed as blocked.
Account mosaic restrictions are generally used to prevent accounts being tagged with mosaics not associated to their activity.
Operation restriction
An account can allow/block announcing outgoing transactions with a determined operation type. By doing so, the account increases its security, preventing the announcement by mistake of undesired transactions.
Examples
Blocking spam transactions
A pharmaceutical company is using the public chain to certify the quality of their products.
When the quality verification process concludes, an operator sends a quality seal to the product account.
The final customers can review the product mosaics scanning a QR code. For that reason, the company only wants to show related transactions, avoiding others from spamming their products with non-related information.

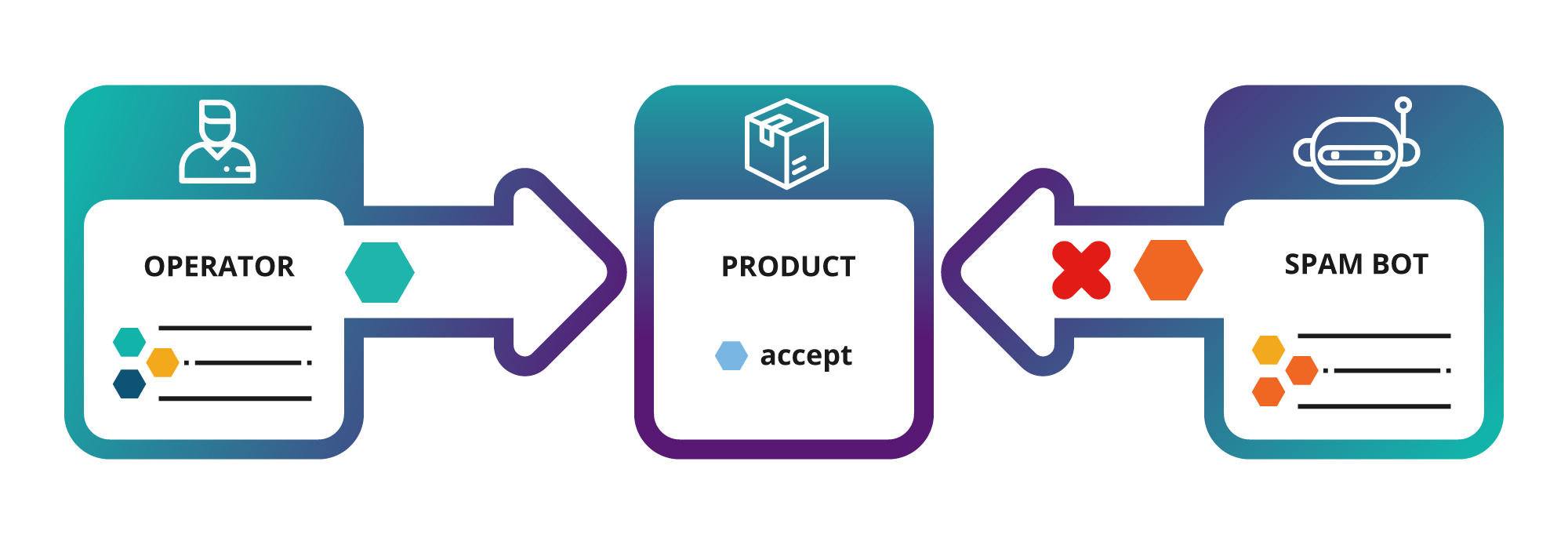

Blocking spam transactions
The company opts to configure their product accounts restrictions, enabling it to only receive transactions containing pharmaceutical.quality.seal mosaics.
Enhancing the account security
Lately, Alice has only been using her main account to cosign aggregate transactions where she is a cosignatory for the multisig account.
As a temporary security measure, Alice opts to disable announcing transfer transactions from her main account. Doing so, Alice double-checks that the funds held in the main account are not going to be transferred by mistake.
Guides
Learn how to add and remove account restrictions.
Schemas
AccountAddressRestrictionModificationTransaction
Configure restrictions to prevent receiving or sending transactions from/to undesired addresses.
Version: 0x01
Entity type: 0x4150
Inlines:
| Property | Type | Description |
|---|---|---|
| restrictionType | RestrictionType | Type of the account restriction. |
| modificationsCount | uint8 | Number of modifications in the transaction. A maximum of 255 modifications per transaction is allowed. |
| modifications | array(AccountRestrictionModification) | Array of account address restriction modifications. |
AccountMosaicRestrictionModificationTransaction
Configure restrictions to prevent receiving transactions containing a specific mosaic.
Version: 0x01
Entity type: 0x4250
Inlines:
| Property | Type | Description |
|---|---|---|
| restrictionType | RestrictionType | Type of the account restriction. |
| modificationsCount | uint8 | Number of modifications in the transaction. A maximum of 255 modifications per transaction is allowed. |
| modifications | array(AccountRestrictionModification) | Array of account mosaic restriction modifications. |
AccountOperationRestrictionModificationTransaction
Configure restrictions to prevent announcing transactions by type.
Version: 0x01
Entity type: 0x4350
Inlines:
| Property | Type | Description |
|---|---|---|
| restrictionType | RestrictionType | Type of the account restriction. |
| modificationsCount | uint8 | Number of modifications in the transaction. A maximum of 255 modifications per transaction is allowed. |
| modifications | array(AccountRestrictionModification) | Array of account operation restriction modifications. |
AccountRestrictionModification
| Property | Type | Description |
|---|---|---|
| restrictionModificationType | RestrictionModificationType | Type of the restriction modification, add or remove. |
| value | (Address, MosaicId or Transaction Type) | Modification value (Address, Mosaic or Transaction Type) |
RestrictionModificationType
| Id | Description |
|---|---|
| 0x00 | Add the selected restriction |
| 0x01 | Remove the selected restriction |
RestrictionType
| Id | Description |
|---|---|
| 0x01 | Allow only incoming transactions from a given address. |
| 0x02 | Allow only incoming transactions containing a given mosaic identifier. |
| 0x04 | Allow only outgoing transactions with a given transaction type. |
| 0x05 | Account restriction sentinel. |
| 0x81 | Block incoming transactions from a given address. |
| 0x82 | Block incoming transactions containing a given mosaic identifier. |
| 0x84 | Block outgoing transactions with a given transaction type. |
